Crystal Resonator
Product > TCXO > Crystal Resonator| Series | Photo | Size(L×W×H)[mm] | Frequency Range | Frequency Tolerance | Operaring Temperature (℃) | Load Capacitance(pF) | Data Sheet |
| 6A HC-49U Crystal Unit |
|
13×11×4.6 | 1~150MHz | ±30ppm | -20~+70 | 20pF |
|
| HC-49S Crystal Units |
|
11×5.0×2.5 | 3~100MHz | ±30ppm | -40~+85℃ | 16pF |
|
| HC-49SMD Crystal Units |
|
11×4.8×3.0 | 3~100MHz | ±30ppm | -20~+70℃ | 16pF |
|
| UM-1 /UM-5 Crystal Units |
|
7×7.8×7.8 /7×7.8×6 | 4~200MHz | ±30ppm | -20~+70℃ | 18pF |
|
| Cylinder Crystal Resonator |
|
2×6×2 | 3.579~50MHz | ±10ppm | -20~+70℃ | 12pF |
|
| 7S SMD 1210 Crystal Units |
|
1.2×1.0×0.3 | 36~54MHz | ±15ppm | -20~+70℃ | 8pF |
|
| 7Y SMD 1612 Crystal Resonator |
|
1.6×1.2×0.35 | 24~54MHz | ±10ppm | -20~+70℃ | 8pF |
|
| 7F SMD 2016 Crystal Units |
|
2.0×1.6×0.5 | 16~54MHz | ±10ppm | -40~85℃ | 10pF |
|
| 96MHz SMD 2016 Crystal Unit |
|
2.0×1.6×0.5 | 96.000MHz | ±10ppm | -40~+85℃ | 10pF |
|
| 7E SMD 2520 Crystal Units |
|
2.5×2.0×0.55 | 12~54MHz | ±10ppm | -40~+85℃ | 10pF |
|
| 7U SMD 3225 Crystal Resonator |
|
3.2×2.5×0.7 | 10~64MHz | ±10ppm | -40~+85℃ | 12pF |
|
| 7I SMD 5032 Crystal Resonators |
|
5.0×3.2×0.9 | 8~125MHz | ±10ppm | -40~+85℃ | 16pF |
|
| 6GA SMD 6035 Crystal Units |
|
6.0×3.5×1.0 | 8~100MHz | ±20ppm | -40~+85℃ | 16pF |
|
| 6GB SMD 6035 Crystal Resonators |
|
6.0×3.5×1.2 | 8~100MHz | ±10ppm | -40~+85℃ | 16pF |
|
| 6F SMD 7050 Crystal Resonators |
|
7.0×5.0×1.0 | 6~160MHz | ±20ppm | -40~+85℃ | 20pF |
|
| 7Z SMD 2520 Glass Crystal Units |
|
2.5×2.0×0.75 | 12~64MHz | ±10ppm | -20~+70℃ | 8pF |
|
| 7V SMD 3225 Glass Crystal Unit |
|
3.2×2.5×0.8 | 8~64MHz | ±20ppm | -20~+70℃ | 8pF |
|
| 6I SMD 5032 Glass Crystal Units |
|
5.0×3.2×1.2 | 8~64MHz | ±30ppm | -20~+70℃ | 16pF |
|
| Series | Photo | Size(L×W×H)[mm] | Frequency Range | Frequency Tolerance | Operaring Temperature (℃) | Load Capacitance(pF) | Data Sheet |
| 7K 32.768kHz SMD Crystal |
|
1.6×1.0×0.50 | 32.768kHz | ±20ppm | -40~+85℃ | 12.5pF |
|
| 7R 32.768kHz SMD Crystal |
|
2.0×1.2×0.6 | 32.768kHz | ±20ppm | -40~+85℃ | 12.5pF |
|

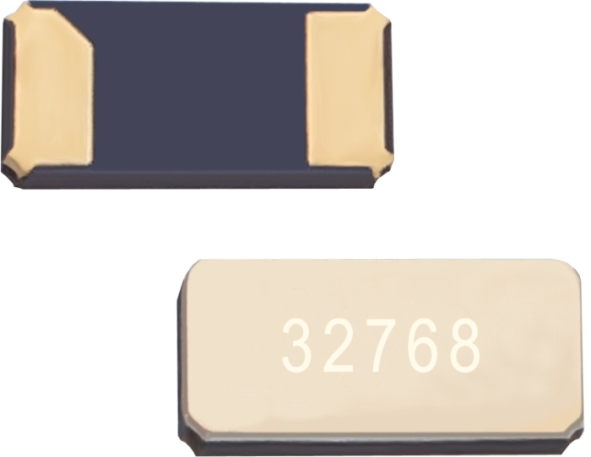

| 7L 32.768kHz SMD Crystal |
|
3.2×1.5×0.75 | 32.768kHz | ±20ppm | -40~+85℃ | 12.5pF |
|
| 7M 32.768kHz SMD Crystal |
|
7.0×1.5×1.4 | 32.768kHz | ±20ppm | -40~+85℃ | 12.5pF |
|

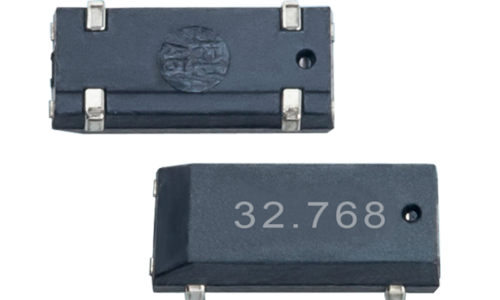

| 308C 32.768kHz SMD Crystal |
|
3.8×8.0×2.4 | 32.768kHz | ±20ppm | -20~+70℃ | 12.5pF |
|
| 206B 32.768kHz SMD Crystal Unit |
|
2.0×6.0×2.6 | 30~1350kHz | ±20ppm | -20~+70℃ | 6.0pF |
|
| 6K Series kHz Crystal Unit |
|
2×6/3×8 | 30~1350kHz | ±20ppm | -20~+70℃ | 12.5pF |
|
